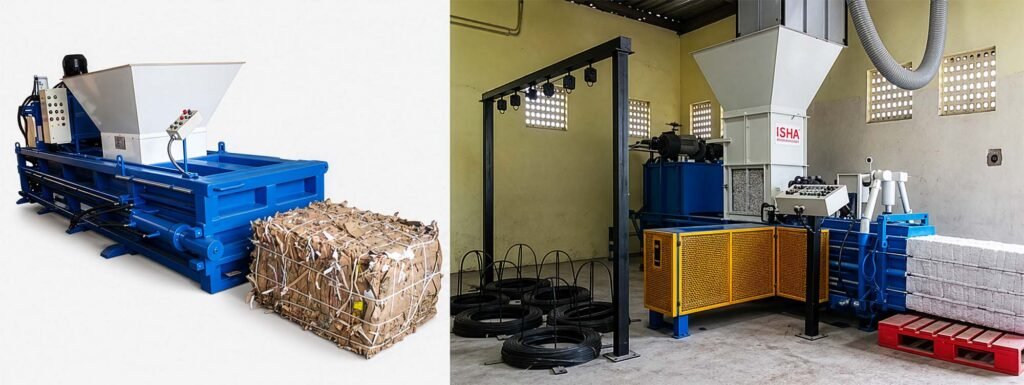

Fully Automatic Horizontal Baling Press

Horizontal balers are large machines that loaded from the top by conveyor belt, forklift, or cyclone system (allowing for larger quantities). They compress from the sides, and are usually automatic (or atleast partially automatic). These machines are ideal for larger quantities of recyclables. They also can reach an output ranging from 1 ton to 12 tons per hour. Needless to say, a horizontal baler can help you more efficiently deal with your waste, both in terms of manpower, and in terms of packing, moving, transporting, and other logistics. In some cases (such as in briquetting machine), you can even create solid fuel, depending on what you are baling.

Because horizontal balers machine can be continuously fed (either manually or by automatic conveyor belt). They almost always reduce your labor costs. Furthermore, horizontal baling machines will also increase your revenue for your recyclables by increasing your payloads, and making waste much easier to transport.Horizontal waste compactors can be found across many industries. They are capable of recycling a variety of materials including cardboard / paper, fiber, plastic, loose materials like sawdust and peanut shells. Their large feed capacity also makes horizontal baling press machines ideal for bulky waste recycling, such as boxboards and many other fibrous products. The larger / faster machines are the top choice for materials recovery facilities and waste recycling operations.

Advantages:

Specification:

ModelISB-18ISB-40ISB-60ISB-100ISB-120ISB-150
Bale Weight100-180kg180-350kg350-550kg500-750kg750-1000kg1000-1400kg
Production Capacity0.8-1.2 Ton/h2-3 Ton/h3-5 Ton/h5-9 Ton/h9-11 Ton/h11-15 Ton/h
Bale Size             Width500mm720mm1100mm1100mm1100mm1100mm
                             Height500mm800mm800mm800mm1100mm1100mm
                             LengthAdjustable
Chamber Size   Width500mm720mm1100mm1100mm1100mm1100mm
                             Height500mm800mm800mm800mm1100mm1100mm
                             Length1200mm1600mm2100mm2400mm2400mm2600mm
Feed Opening    Length700mm1200mm1600mm1800mm1800mm200mm
                             Width450mm670mm1000mm1000mm1000mm1000mm
Cylinder Bore125mm150mm180mm220mm250mm300mm
Motor power15 HP20 HP 30HP60 HP75 HP50 HP x 2
Cycle Time (Unloaded)16-18sec14-16sec18-20sec16-19sec19-22sec25-28sec
No.of typing3 Nos4 Nos4 Nos4 Nos5 Nos5 Nos
Overall Size       Width3100mm 3800mm4500mm4500mm5000mm5000mm
                            Height1600mm1800mm2100mm2100mm2100mm2100mm
                            Length5000mm6300mm8200mm9000mm9000mm9500mm
Oil Tank Capacity350L700L900L1200L1500L2100L
ControlPLC Control Panel with HMI
